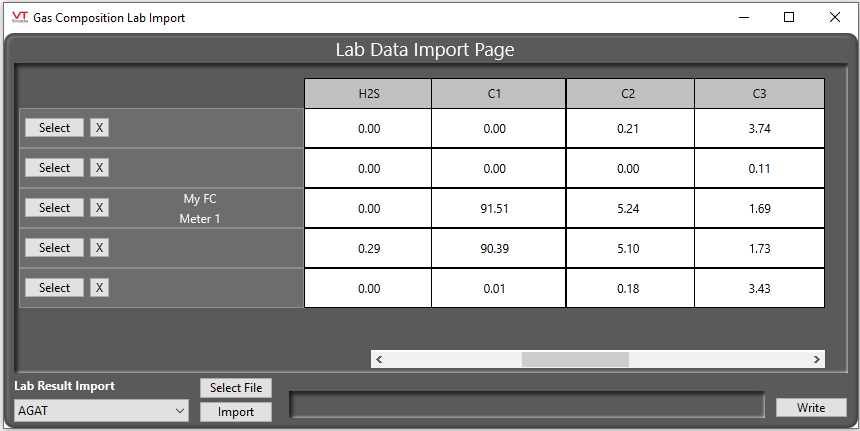

Lab Data Import Page

This is a pop-up page that you can use to import a Lab Result CSV file.



Each lab formats their files slightly differently, and VTScada needs to know which format to use in order to properly extract the information.

Use the drop-down list to select the correct format for your file.

After a format has been selected, press the “Select File” button to choose the file to read. Pressing the “Import” button will read the file and fill in the appropriate fields on the screen, but the data will not be written back to the flow computer until the “Write” button has been pressed.

After the file has been loaded, the "Select" buttons will allow you to choose the Meter Run tag to be associated with each line of data.

You will be prompted to confirm the action before the values are written.
