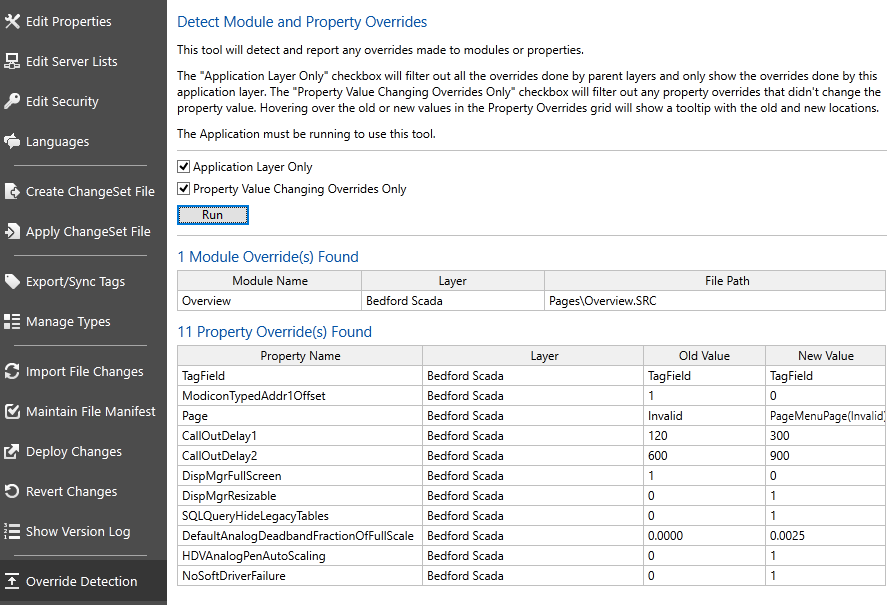

Override Detection

This tool exists to help you detect the source of errors in an application. Here, the word "module" is used in the same sense as in the VTScada scripting language. Pages, tags, widgets and more are all stored as "modules".

Modules and properties that have been changed from the defaults of the Standard Application Layer are displayed. Modules and properties that exist only in your application (or its underlying layers) are not shown. You can expect "Pages\Overview.SRC" to be contain overrides in nearly every application.

There are two options: When Application Layer Only is selected, only the current application is examined. If not selected, underlying layers are also examined.

If there are properties that are defined in the application, but have the same value as those defined in Standard Application, they will not be shown in this list unless you deselect the option, Property Value Changing Overrides Only.
