Used by: Driver Multiplexer tag.
* Does not use the Style Settings tag.
The Active Subordinate widget displays the Full Name, Short Name, or Description of the active subordinate driver tag of a Driver Multiplexer tag.

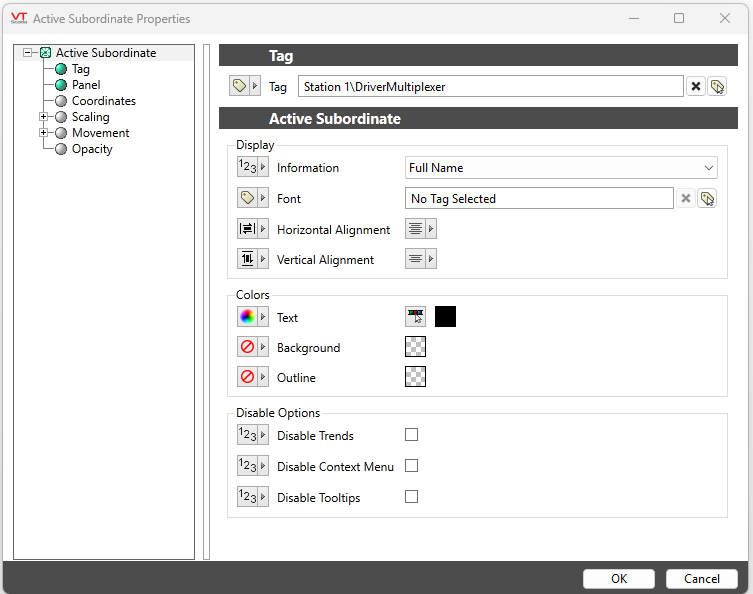

The properties dialog for the Active Subordinate widget:
Information
The preferred style of name (Full, Short, or Description) is chosen from a drop down box in the display settings. If unlinked to a tag, the widget displays the default text, "Active Subordinate." If the widget is set to "Description" but the linked tag lacks a description, it will default to the Full Name.
Full Name – Full name of the active subordinate
Short Name – Short name of the active subordinate
Description – Description of the active subordinate
Font
Sets the font by linking to a font tag or linked tag property, selecting from a parameter, or entering an expression
Vertical Alignment
Sets the text's vertical alignment within the widget's bounding box: top, center, or bottom.
Horizontal Alignment
Sets the text's horizontal alignment within the widget's bounding box: left, center, or right.
Colors
Set the color of the text, outline, or background for the widget.
Disable Options
Disable selected operator-interaction features of this widget.
See: Operator Interaction Controls
