Controller Status Widget

This widget is a part of one of the automatically-built station pages. While it can be added to a user-created page, that is not it's intended purpose.

Used by:  Grundfos Control MPC, Grundfos Dedicated Controls, MPE Duplexer Station, MPE SC Station



The Controller Status widget is component of the Station Summary widget, monitoring the linked tag. The content and appearance will vary according to the linked tag and the configuration of that tag.

or

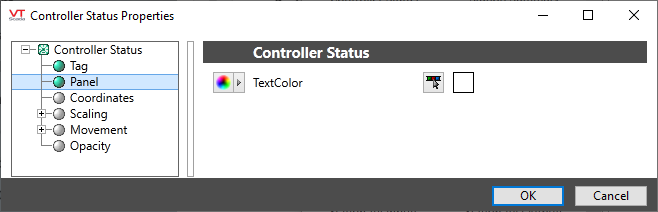

The properties dialog for the Controller Status widget:

Text Color

Sets the color for labels and information within the widget. Defaults to white for visibility against a dark gray background.

Widget Folders:

Equipment\Lift Stations\MPE Duplexer\

Equipment\Lift Stations\MPE SC\

Equipment\Lift Stations\Grundfos Control MPC\

Equipment\Lift Stations\Grundfos Dedicated Controls\

Tag Types\Pump Station Controllers\MPE\MPE Duplexer Station\

Tag Types\Pump Station Controllers\MPE\MPE SC Station\

Tag Types\Pump Station Controllers\Grundfos\Grundfos Dedicated Controls\

Tag Types\Pump Station Controllers\Grundfos\Grundfos Control MPC\
