Not linked to any tag
* Does not use the Style Settings tag.

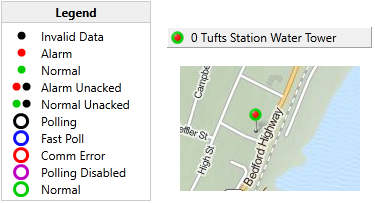

The Site Legend describes the colors used in Site Icon indicators. While not quite a widget, it is more than just an image. You can draw a Site Legend on any page. Operators can use a button in the Sites page to toggle display of the legend on or off.
The dots show the meaning of colors in the center of the icon. Two dots together in the legend indicate that the icon will alternate between those colors. The rings show the meaning of colors in the outer ring of the icon. Several of these colors apply only to Polling drivers and DataFlow Stations.

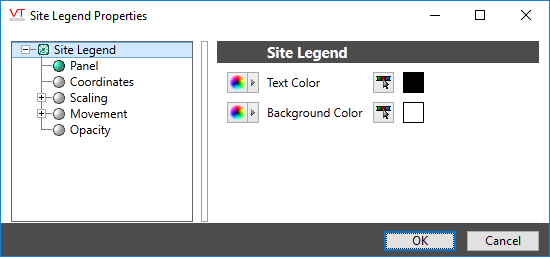

By default, the legend is drawn with black text on a white background but both can be changed. The legend can be scaled as needed.
