Well Setpoints Widget
This widget is a part of one of the automatically-built station pages. While it can be added to a user-created page, that is not it's intended purpose.
Used by: Grundfos Control MPC, Grundfos Dedicated Controls, MPE Duplexer Station, MPE SC Station, MultiSmart Station
The Well Setpoints widget is used to set the lead and lag setpoints for the pumps. Differing numbers of profiles may be created depending on the linked station type, with each profile having with a different configuration of setpoints. These are provided to allow operators to quickly switch operating parameters in response to changing conditions such as an approaching rainstorm, etc. The various profiles are used only for changing the pump lead and lag setpoints.
For reference, the display also shows the current depth of water in the well as a blue background.
You can adjust the setpoints using the sliders, or for greater accuracy, you may type values into the fields above each setpoint slider.
The content and appearance will vary according to the linked tag and the configuration of that tag.

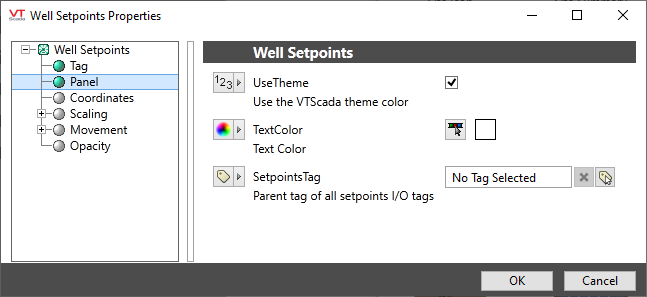

The properties dialog for the Well Setpoints widget:
Use Theme
If selected, the overall appearance of the widget will follow the applications color theme. Dark gray otherwise.
Text Color
Sets the color for labels and information within the widget. Defaults to white for visibility against a dark gray background.
Setpoints Tag
Select the parent tag, within the station, of all the setpoint I/O tags.
Equipment\Lift Stations\
Tag Types\Pump Station Controllers\MPE\MPE Duplexer Station\
Tag Types\Pump Station Controllers\MPE\MPE SC Station\
Tag Types\Pump Station Controllers\Multitrode\MultiSmart Station\
Tag Types\Pump Station Controllers\Grundfos\Grundfos Dedicated Controls\
