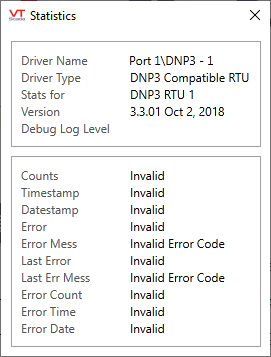

DNP3 Driver Statistics Dialog
The Show Stats button will display the following information about a DNP3 driver tag.
Driver Name The full name of the driver for which statistics are being displayed.
Driver Type Identifies the type of driver to which this Show Stats dialog is linked.
Stats For The driver's description.
Version The version number and date that this driver was created.
Debug Log Level Reserved for use when working with technical support.
Counts The number of successful communications since the system started.
Timestamp The time of the last successful communication.
Date Stamp The date of the last successful communication.
Error The error number (code) for the current error.
Error Mess A message describing the type of communications error that has occurred.
Last Error The error number (code) for the last error that occurred.
Last Error Mess A message describing the type of communications error that last occurred.
Error Count The number of errors that have occurred since the system started.
Error Time The time of the last reported error.
Error Date The date of the last reported error.
