Used by: I/O and Calculations, Alarm Status, Analog Input, Analog Output, Analog Status, Analog Control, Calculation, Comm Link Sequencer, Counter, Deadband Control, Function, History Statistics, Rate of Change, Script, Selector Switch, Totalizer SQL Logger.
* Does not use the Style Settings tag.
The Meter 1 widget is used to represent the associated tag's value as a numeric display, including the engineering units of the tag (% in this example) in the lower right corner.

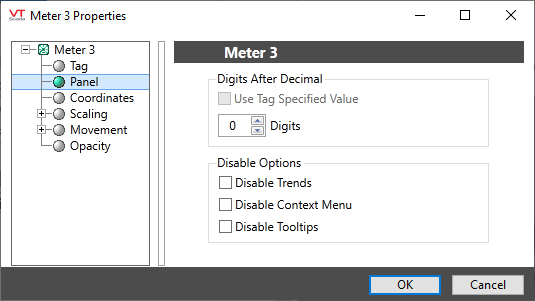

The properties dialog for the Meter 3 widget:
Digits After Decimal
Used to adjust the displayed accuracy of the meter. The displayed value will be rounded to the number of decimal points set. This is for display purposes only and has no effect on the tag’s value.
If linked to an I/O and Calculation tag, you can choose to use the current Digits after Decimal setting from the tag's configuration instead.
Disable Options
Disable selected operator-interaction features of this widget.
See: Operator Interaction Controls
Gauges\Basic Analogs\
