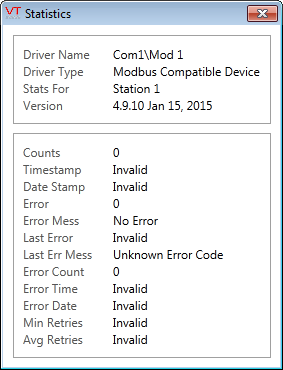

Modbus Compatible Device Statistics Dialog
The Show Stats button will display the following information about a Modbus Compatible Device tag.
Driver Name The name of the driver (within the driver's code) for which statistics are being displayed.
Driver Type Identifies the driver.
Stats For The name of the station for which the statistics are displayed.
Version The version number and date that this driver was created.
Counts The number of successful communications since the system started.
Timestamp The time of the last successful communication.
Date Stamp The date of the last successful communication.
Error The error number (code) for the current error.
Error Mess A message describing the type of communications error that has occurred.
Last Error The error number (code) for the last error that occurred.
Last Error Mess A message describing the type of communications error that last occurred.
Error Count The number of errors that have occurred since the system started.
Error Time The time of the last reported error.
Error Date The date of the last reported error.
Min Retries The minimum number of attempts at communication (retries) after an error has occurred.
Avg Retries The average number of attempts at communication (retries) after an error has occurred.
