SNMP Driver Statistics Dialog

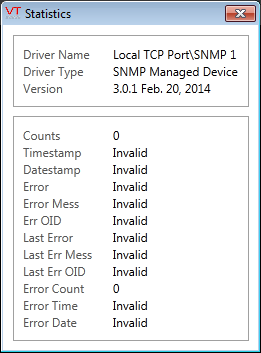

The Show Stats button will display the following information about a SNMP driver tag.

Driver Name The name of the driver (within the driver's code) for which statistics are being displayed.

Version The version number and date that this driver was created.

Stats For The name of the station for which the statistics are displayed.

Counts The number of successful communications since the system started.

Timestamp Displays the time of the last successful communication.

Date Stamp The date of the last successful communication.

Error The error number (code) for the current error.

Error Mess Describes the type of communications error that has occurred.

Err OID Gives the object ID where the error occurred.

Error Count Incremented on each error.

Last Error The number (code) for the error that last occurred.

Last Error Mess A message describing the type of communications error that last occurred.

Last Err OID A message giving the object ID where the error  last occurred.

Error Time The time of the last reported error.

Error Date The date of the last reported error.
