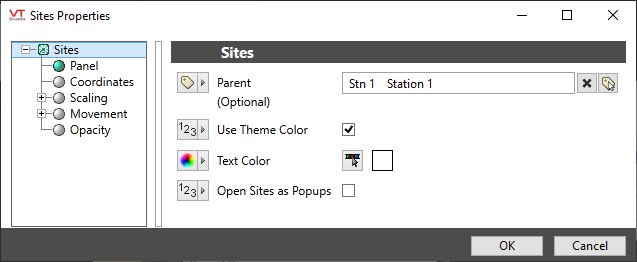

Sites Widget

Can be used to draw a dedicated Sites page on another page.

Does not link to a tag, but (optionally) accepts any of a Station tag, Polling Driver, Context tag, or user-defined type as the Parent Tag parameter. The site display will then be limited to tags in that hierarchy.





Parent

Select any of the types listed above to restrict the list to that parent hierarchy.

Use Theme Color

Follows the theme color of the application when selected. A deep gray otherwise.

Text Color

Sets the color of labels within the display. Where the default theme is a deep gray, a light color works best for the text.

Open Sites as Popups

When selected, sites within the hierarchy open as pop-ups in response to an operator's click, rather than navigating within the widget.

Widget Folders:

Basic Components\Multi-Variable\

Basic Components\Specialty\Mapping\

Tools\Site Tools Library
