Control Valve (Static) Widget

Not linked to any tag.

* Does not use the Style Settings tag.

The Control Valve (Static) widget is used to display a control valve image.

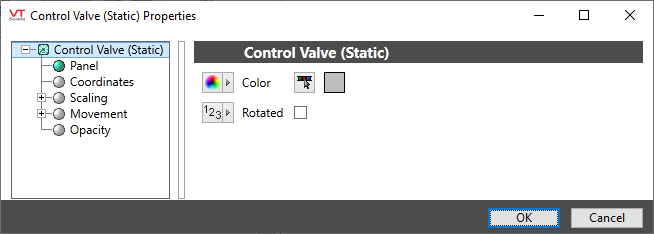

The properties dialog for the Control Valve (Static) object:

Color

Assign a specific color, create an expression, or select a tag whose value can be used for a color. (VTScada Color Palette)

Rotated

When selected, the image is rotated 90 degrees clockwise.

Widget Folders:

Oil & Gas\Equipment (Static)
