Digital Text with Label
Used by: Digital Status, I/O and Calculation in digital mode.
* Does not use the Style Settings tag.
The Digital Text with Label widget is similar to the Numeric Display with Label widget, but displays the text configured in the Digital Status tag, or a custom label, defaulting to On or Off.

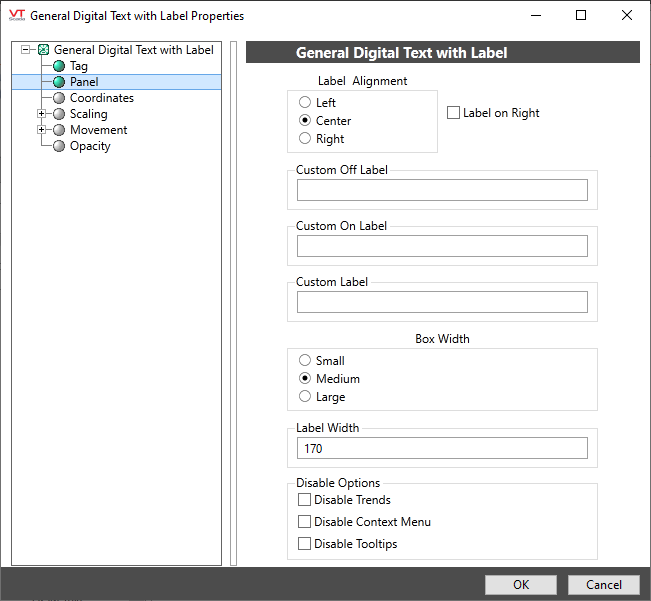

The properties dialog for the Digital Text with Label widget:
Label Alignment
Select whether the label should be right, center, or left-aligned within the space assigned to it.
Label on Right
If selected, the label will be placed to the right of the value instead of its default position on the left.
Custom Off Label
A label to display in place of what is configured in the tag. Defaults to "Off" if no label is available from the tag.
Custom On Label
A label to display in place of what is configured in the tag. Defaults to "On" if no label is available from the tag.
Custom Label
By default, the linked tag's description is shown. Use this field to specify an alternate label.
Box Width
Small -> the box displaying the value is the same size as the widget's bounding box.
Medium -> the box is approximately 1.5 times the width of the bounding box.
Large -> the box is approximately 2 times the width of the bounding box.
Label Width
Sets the space, in pixels, of the area available for the label. If there are more characters than will fit in the available width, they will be scaled to fit.
Disable Options
Disable selected operator-interaction features of this widget.
See: Operator Interaction Controls
