Fan (Dynamic) Widget
Used by: Digital Status, I/O and Calculation
* Can use properties from a Style Settings tag.
The Fan (Dynamic) widget is used to display a fan image that changes color according to whether the linked equipment is running. The colors are pre-configured and consistent with other Oil & Gas Solutions widgets. Note the existence of the tag, System Style O&G, for use by tags and widgets from the Oil and Gas Solutions layer.

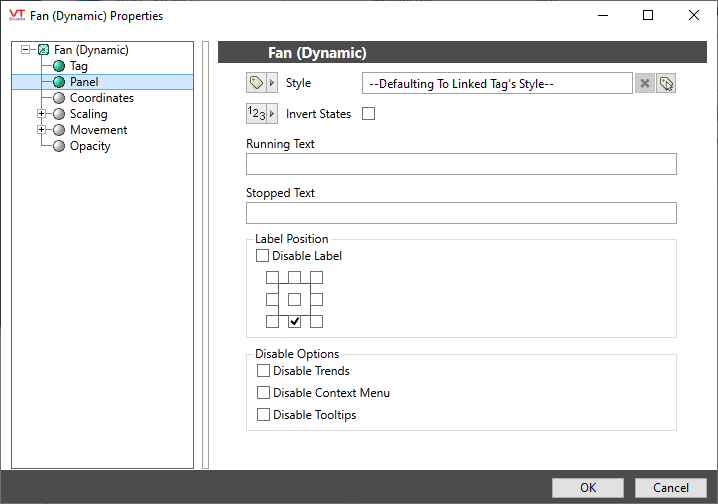

The properties dialog for the Fan (Dynamic) object:
Style
If no labels are entered for the OpenText, Closed Text or Travel Text parameters then this widget will default the labels to those in the Digitals section of the selected style tag. See: Style Settings Tags
Invert States
When selected, the widget will show the running color / text for a value of 0 and the stopped color / text for a value of 1.
Running Text
Label to display when the linked tag is in the running state.
Stopped Text
Label to display when the linked tag is in the stopped state.
Label Position
Use the grid of selection boxes to set the position of the label relative to the widget image.
Optionally, use the Disable Label option to prevent the label from being displayed.
Disable Options
Disable selected operator-interaction features of this widget.
See: Operator Interaction Controls
Oil & Gas\Equipment (Dynamic)
