Flow Computer Alarm/Event/History List
Used by: Flow Computer or Meter Test Run.
* Does not use the Style Settings tag.
This widget is part of the Flow Computer Site Details page (Events tab), and is not usually drawn independently.

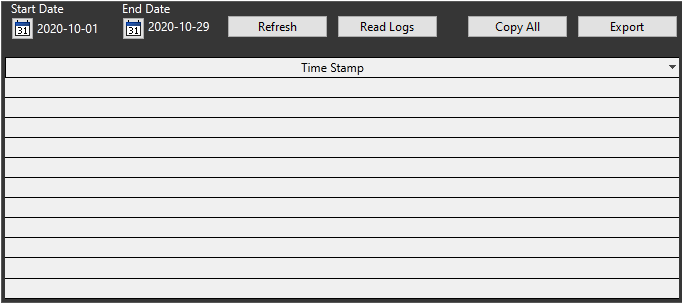

Note the top row, which is a header. The text will vary depending on the selected DataType (Alarms, Events, Hourly Values or Daily Values). The arrow at the right of each column in the header row (example shows only one) allows operators to sort the list in ascending or descending order.
Calendar controls
Allow the operator to select a range of dates between a defined start and end.
Refresh
This list shows historical data. Use the Refresh button to include events that were loaded from the RTU since displaying the list.
Read Logs
Will force a poll of the RTU when selected. Protected by a user-privilege, selected in the linked tag.
Copy All
Copies the entire data set to the Windows clipboard. Protected by a user-privilege, selected in the linked tag.
Export
Exports the data set to a comma-separated values (CSV) file. The operator will be prompted for the file's name and location. Protected by a user-privilege, selected in the linked tag.

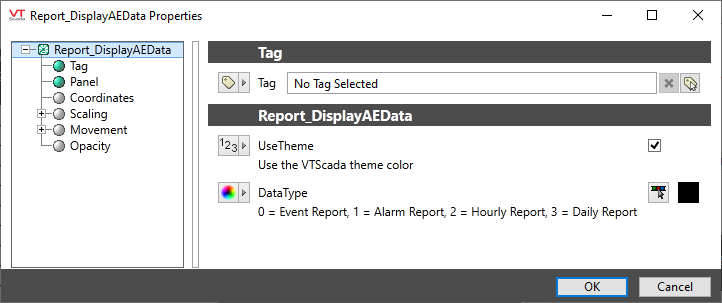

The properties dialog for the Flow Computer Alarm/Event/History List widget:
UseTheme
By default, the control is shown using the application's color theme. If deselected, the control will be shown using the Grey theme.
DataType
In a Site Page, where this widget would normally be drawn, each of the following tabs contains an instance of this widget with a different DataType value. (Tab order does not match the numeric order of DataType values.)
