Generic Driver Statistic Widget

* Does not use the Style Settings tag.

Displays selected communications information about a driver, such as the current error state, the last error or the success count. This can be used to build customized communications screens or widgets, based on the communications information that is most relevant to your process.

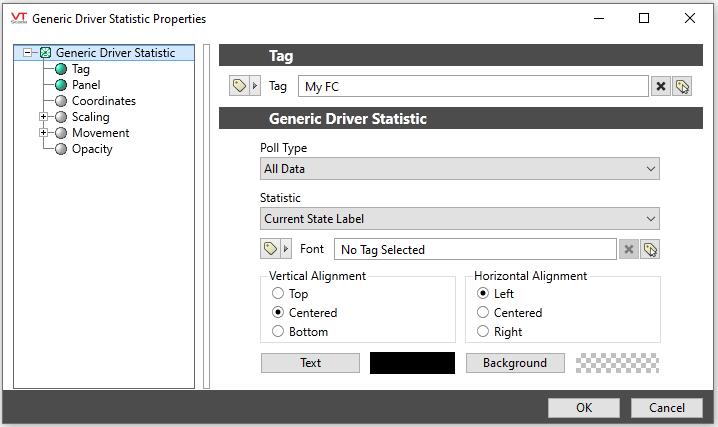

The properties dialog for the Generic Driver Statistic object:

Poll Type

Appearing only when this widget is linked to a flow computer tag, this parameter allows you to specify the flow computer driver(s) that this widget should apply to. For example, you may want statistics on just the daily history communications, on all history communications, or on all communications with the flow computer of any kind.

Statistic

Select one of the Communication Driver Log-Enabled Variables, or its label.

Font

Select the Font tag that will control the appearance of text within the field.

Vertical Alignment / Horizontal Alignment

Controls the alignment of text within the widget's bounding box.

Color - Foreground and Background

Set the color to be used by text in the field and the background color of the field itself.
