Tag Order Change Widget

* Does not use the Style Settings tag.

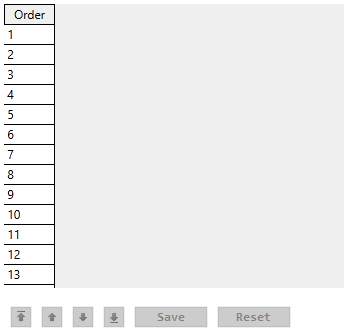

Used to allow operators to change the order of the listed tags.

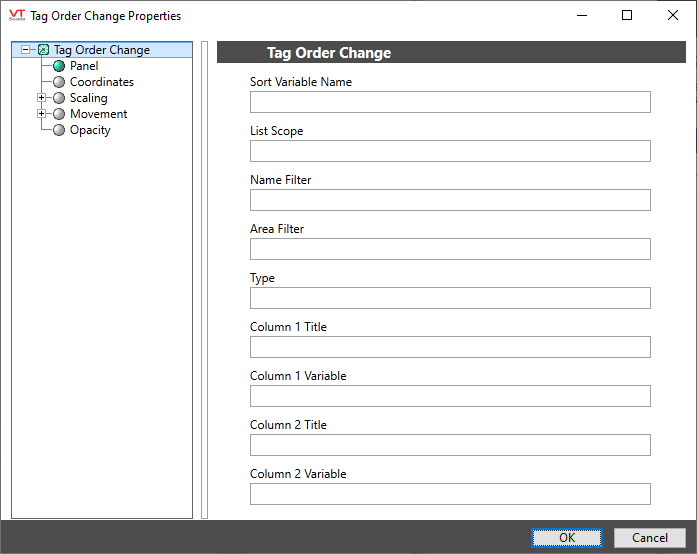

The properties dialog for the Tag Order Change object:

Sort Variable Name

Defines which variable within the tag is to be used for sorting.

List Scope



Name Filter

Use to limit the selection to tags whose name matches the filter. May include wildcards.

Area Filter

Use to limit the selection to tags whose area property matches the filter. May include wildcards.

Type

Use to limit the selection to tags whose type matches the filter. May include wildcards.

Column 1 Title

Set the title of the first column.

Column 1 Variable

Provide the name of the tag variable to be shown in the first column.

Column 2 Title

Set the title of the second column.

Column 2 Variable

Provide the name of the tag variable to be shown in the second column.
