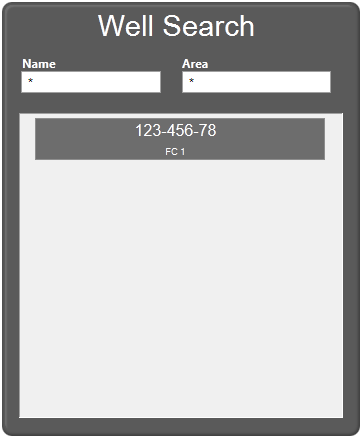

Well Search Widget
* Does not use the Style Settings tag.
The Well Search widget does not link to any tag. You must configure is using parameters.
Operators can use this to search through all of the Flow Computer tags in the application using both name and area filters.
By default, the description of each Flow Computer tag is shown in the search results field. Depending on your tag structure you may want to re-configure the widget to use the description of the Flow Computer’s parent tag instead. This widget follows your VTScada color theme.

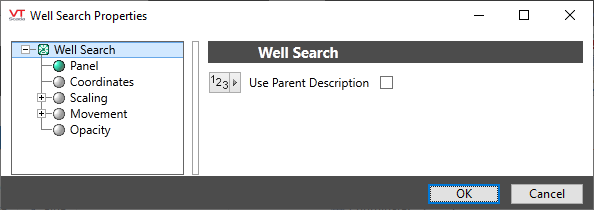

The properties dialog for the Well Search object:
Use Parent Description
Select this option if your tag configuration is such that it makes more sense to use the description of the Flow Computer's parent tag. Note that this does not affect which tags are searched, only the text that is displayed.
Oil & Gas\Flow Computer
