(Alarm Manager module)
| Description: |
Returns a structure containing the cumulative alarm state statistics for the specified tag. (See following notes.) If the tag is the ancestor of multiple alarm tags, the stats will be the accumulation of all descendent alarms. |
| Returns: | Structure |
Usage:  |
Script or steady state. |
| Function Groups: | Alarm |
| Related to: | GetAlarmObject |
| Format: |
\AlarmManager.GetAlarmStateStats(TagInstance) |
| Parameters: |
| TagName |
| Required object reference. The tag for which statistics are to be gathered. |
| Comments: |
TagName may be a context or other parent, in which case statistics will be gathered for all of the child tags. It may also be Code, in order to retrieve statistics about the whole application. Information returned by this function is not limited by realm-area filtering. The return structure includes the following elements: ActiveCount { Total Active alarms including descendents };
UnackedCount { Total Unacked alarms including descendents };
ShelvedCount { Total Shelved alarms including descendents };
DisabledCount { Total Disabled alarms including descendents };
SuppressedCount { Total Suppressed alarms including descendents };
HighestActivePriority { Highest priority of active alarms including descendents };
HighestUnackedPriority { Highest priority of unacked alarms including descendents };
ActivePriorities { Dictionary of counts of active alarms for each priority, including descendents };
UnackedPriorities { Dictionary of counts of unacked alarms for each priority, including descendents }
The dictionaries, ActivePriorities and UnackedPriorities are keyed by alarm priority numbers, which are padded with zeros. For example, the key to access the count of Critical active alarms is "0001". |
Example 1:
TotalStats = \AlarmManager.GetAlarmStateStats(MyContextTagName); TotalUnackedPriority = TotalStats.HighestUnackedPriority;
If there are two active critical alarms and three active high alarms, then...
\AlarmManager.GetAlarmStateStats(\Root).ActiveCount
returns 5
\AlarmManager.GetAlarmStateStats(\Root).HighestActivePriority
returns 1
\AlarmManager.GetAlarmStateStats(\Root).ActivePriorities["0001"]
returns 2
Example 2:
Given an application where the only current alarm is from a Roster Alarm Test, the following statement:
AlmStats = \AlarmManager.GetAlarmStateStats(\Code);

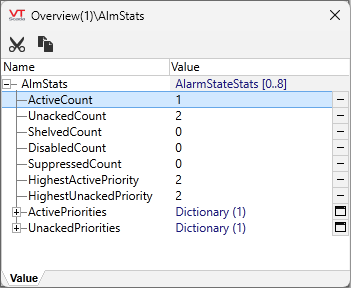

will set AlmStats to:
