Pump Control Widget

This widget is a part of one of the automatically-built station pages. While it can be added to a user-created page, that is not it's intended purpose.

Used by:  Grundfos Control MPC, Grundfos Dedicated Controls, MPE Duplexer Station, MPE SC Station, MultiSmart Station

You can create your own version of this widget, which will work with your custom tag types, by following the directions in the topic Build a Station Widget.

The Pump Control widget is used to display a control switch, status, and certain statistics for a pump that is part of a station tag. The content and appearance will vary according to the linked tag and the configuration of that tag.

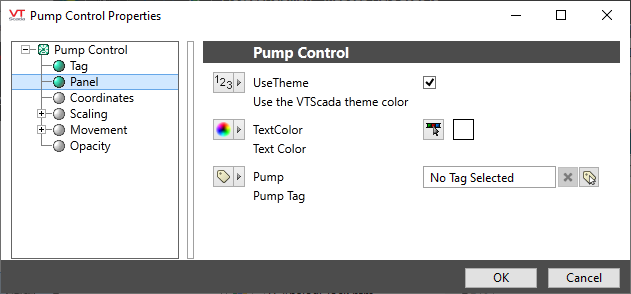

The properties dialog for the Pump Control object:

Use Theme

If selected, the overall appearance of the widget will follow the applications color theme. Dark gray otherwise.

Text Color

Sets the color for labels and information within the widget. Defaults to white for visibility against a dark gray background.

Pump

Select the pump within the linked station tag.

Widget Folders:

Equipment\Lift Stations\MultiSmart\

Equipment\Lift Stations\MPE Duplexer\

Equipment\Lift Stations\Grundfos Control MPC\

Tag Types\Pump Station Controllers\MPE\MPE Duplexer Station\

Tag Types\Pump Station Controllers\MPE\MPE Duplexer Station\Pump\

Tag Types\Pump Station Controllers\MPE\MPE SC Station\

Tag Types\Pump Station Controllers\MPE\MPE SC Station\Pump\

Tag Types\Pump Station Controllers\Multitrode\MultiSmart Station\

Tag Types\Pump Station Controllers\Multitrode\MultiSmart Station\Pump\

Tag Types\Pump Station Controllers\Grundfos\Grundfos Dedicated Controls\

Tag Types\Pump Station Controllers\Grundfos\Grundfos Control MPC\
