Station Details Widget
This widget is a part of one of the automatically-built station pages. While it can be added to a user-created page, that is not it's intended purpose.
Used by: Grundfos Control MPC, Grundfos Dedicated Controls, MPE Duplexer Station, MPE SC Station, MultiSmart Station
You can create your own version of this widget, which will work with your custom tag types, by following the directions in the topic Build a Station Widget.
The Station Details widget provides the content for an automatically-generated Station Details page for the linked station tag. The content and appearance will vary according to the linked tag and the configuration of that tag.
For further detail, see Lift Station Page

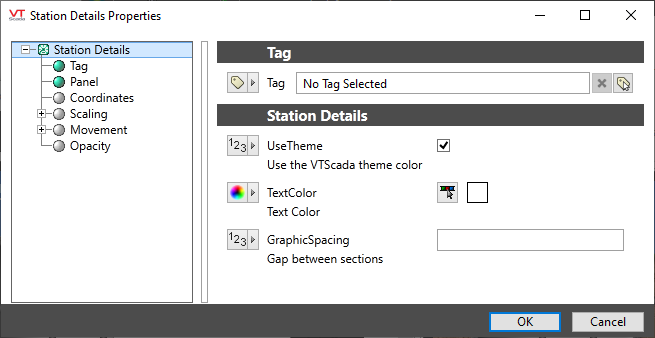

The properties dialog for the Station Details object:
Use Theme
If selected, the overall appearance of the widget will follow the applications color theme. Dark gray otherwise.
Text Color
Sets the color for labels and information within the widget. Defaults to white for visibility against a dark gray background.
Graphic Spacing
Sets the gap between components of the page. Components vary according to the linked tag and the configuration of that tag.
