Well Details Widget
This widget is a part of one of the automatically-built station pages. While it can be added to a user-created page, that is not it's intended purpose.
Used by: Grundfos Control MPC, Grundfos Dedicated Controls, MPE Duplexer Station, MPE SC Station, MultiSmart Station
You can create your own version of this widget, which will work with your custom tag types, by following the directions in the topic Build a Station Widget.
The Well Details widget provides monitoring of pump status, water levels, setpoints, and relevant historical statistics. The content and appearance will vary according to the linked tag and the configuration of that tag.

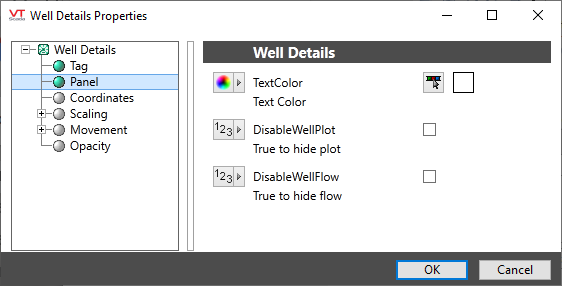

The properties dialog for the Well Details widget:
Text Color
Sets the color for labels and information within the widget. Defaults to white for visibility against a dark gray background.
Disable Well Plot
When selected, the trend of water levels over the past 24 hours will not be shown.
Disable Well Flow
When selected, the flow statistics will not be shown.
