Batch History List Widget

Used by:  Recipe Book

* Does not use the Style Settings tag.

The Batch History Page is accessible from the page menu > Alarms, Reports & Diagnostics > Recipes > Batch History.

The Batch History List widget includes the tools available in The Batch History Page. Refer to that topic for a description of each tool within the widget.

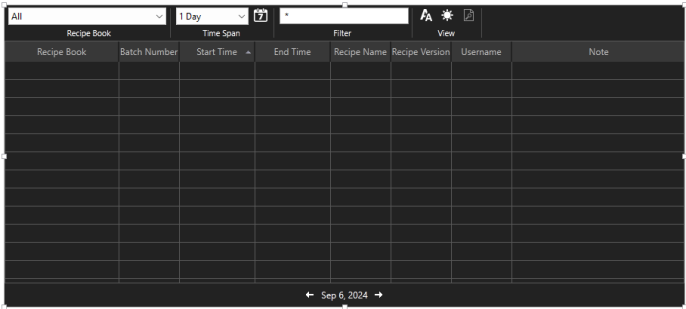

This table will display one entry per completed batch and is filterable by recipe book, time span and keywords.

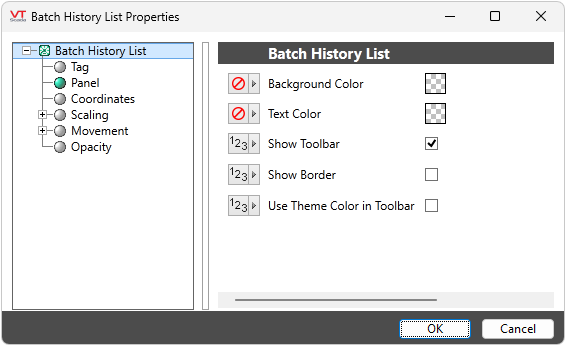

The properties dialog for the Batch History List widget:

Background Color

Set the color to be used in the background. Select a specific color, link a Style tag, set a parameter, link a tag property or use an expression.

Text Color

Set the color to be used for the text. Select a specific color, link a Style tag, set a parameter, link a tag property or use an expression.

Show Toolbar

Disable to hide the toolbar

Show Border

Add or remove a border around the perimeter of the widget.

Use Theme Color in Toolbar

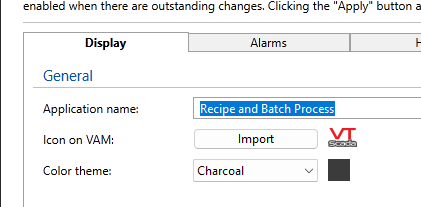

Use the application color theme set in the Application Configuration menu for the toolbar.
