Sync Status Indicator Widget
Used by: Data Diode Client tag
* Does not use the Style Settings tag.
The Sync Status Indicator widget is used to monitor the status of the Data Diode Client tag in the client application of the Data Diode configuration. This widget is often paired with a Comm Indicator and the Historian Status widget to monitor the status of the Data Diode Client tag. The widget will display its normal color (default green) with the caption "In Sync" unless an error is detected.
An example of the Sync Status Indicator widget in its default state.
If an error is detected (for example, records are receivedout of order or records are missing) the indicator will change to the error color (default red) and display timestamps indicating when the missing data was detected and the last time data was in sync.
An example of the Sync Status Indicator widget in an error state.

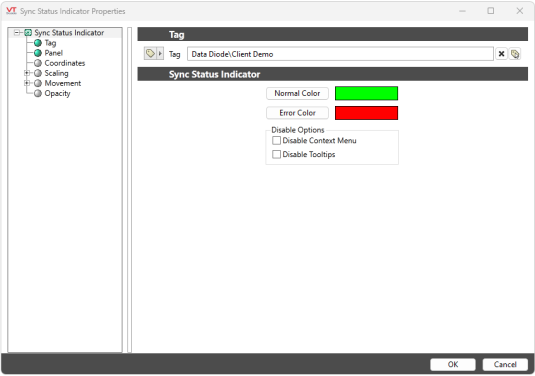

The properties dialog for Client Sync Status Indicator:
Normal Color
The color to display when the associated Data Diode Client tag is under normal conditions.
Error Color
The color to display when an error is detected (for example, records are missing).
Disable Options
Disable selected operator-interaction features of this widget.
