Logging and Reporting

Monitoring your system generates a lot of data. Changes in values from I/O tags, alarms, events, log-ins, log-outs, notes, calculations and more. Where does that data go and what can you do with it? The short answer is that all data is logged in the Historian and accessible by means of the Historical Data Viewer (HDV), generated reports, and via ODBC-compliant databases. There are a number of pages and page-building options, widgets and reporting features that can be used to display, store, track, trend and monitor depending on the needs of your system. When it comes to logging data, VTScada prioritizes security, speed, stability and efficiency.

Data logged in the Historian is used to display trends, generate reports and can be accessed directly from the History tab of the Alarm Page and the Historical Data Viewer page. If you have ever double-clicked on a widget linked to an I/O tag to view its recent trend, that plot was calculated from data stored in the Historian.

Records of Alarms and events are also accessible from the Historian. Alarms and events are viewable from the Alarm Page.

The Report Studio uses logged data, alarms and events to generate reports. There are Data Sets specifically for querying:

  • Data logged from I/O Tags
  • Alarms and Events
  • Specialty queries for tags such as Recipe Books, Transaction Loggers, and Notebooks

(See Create and Manage Data Sets for more information)

Some enterprises use the Historian's database capabilities to allow queries from other authorized and interested parties, like their business department. Often, regulatory parties require regular reports. These reports can be defined and saved in the Report Studio and scheduled to auto-generate, run ad-hoc, or configured to generate if triggered by specific conditions.

Fundamental Components of Every Report:

The word "Report" tends to acquire some very specific meaning depending on your industry, jurisdiction and department. It's important to stay flexible and remember that a report is:

A given selection of data, spanning a given time period...

This includes raw data from any I/O tag, processed data from VTScada analytic tags, driver quality statistics, alarm history, and operator notes. It can also include data pulled from outside sources.

...A process that calculates, filters and summarizes data into meaningful information...

Sometimes you will want to see raw data as it was stored, but most often you will want to filter and summarize the information to identify trends or statistics.

...Usually intended for a human audience.

Reports that are helpful and useful tend to include design elements that make the trends very apparent very quickly to other people. They may include plotted trends or a thoughtful layout. Or they may condense thousands of records into a smaller selection of averages with summary rows to highlight key performance indicators.

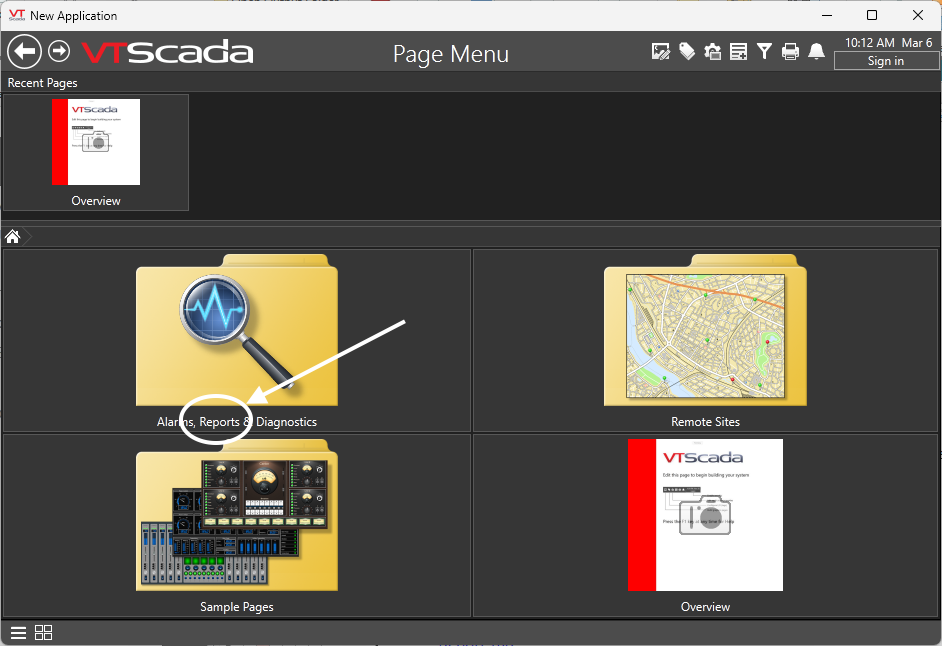

You are not limited to reports generated by the Report Studio or the Report Page. You may notice a Printer icon and a Copy icon or Export options in places such as the Historical Data Viewer and the Alarms Page. If you find yourself in need of a Report to show a selection of data that you are currently staring at in VTScada, you may only need to click print or copy and paste into a text editor or spreadsheet software of your choice.

Integration With Third-Party Reporting Tools

You have several options for using third-party reporting tools with VTScada:
