Form Reset Button Widget

Used by: Forms

This reset button is used with other form-related widgets. When clicked, this widget will reset every form entry enabled widget on the same page back to it's original value at the time of the associated timestamp. The reset button must be on the same page or pop-up as the enabled data-entry widgets.

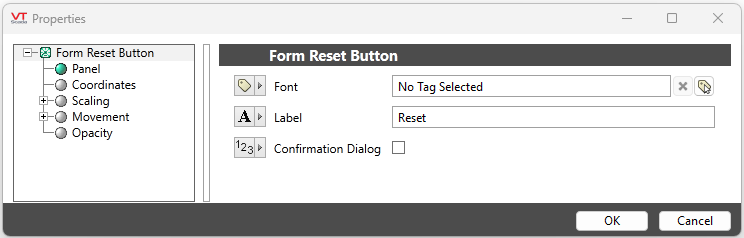

The properties dialog for the Form Reset Button Widget:

Font

The font used to display the label. Defaults to the current system font.

Label

Text to display on the button. Defaults to "Reset".

Confirmation Dialog

If selected, the operator must confirm the action before all values are reset.
